Medium Audiovisual System
1005216 / NSN's Pending

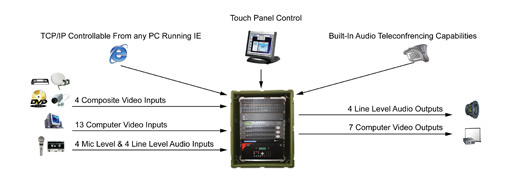

FEATURES:
- Control Interface via touch panel or secure Internet connection. Touch panels may also be used to view/cue video to be displayed on projection screens.
- Long Distance Video Distribution: Uses RGBHV over CAT5 technology for long distance video distribution with minimal signal degradation.
- Video In: One HD15 and 12 CAT5 Computer Inputs that accept up to 1600 x 1200 resolution. Four BNC Composite (PAL/NTSC) Inputs for DVD/SAT TV and Camera/UAV video.
- Audio In: Four Mic level XLR Inputs and four Line Level XLR Inputs for DVD/SAT TV audio.
- Video Out: Three HD15 and four CAT5 Computer Outputs.
- Audio Out: Four Line Level XLR outputs, one dedicated to speaker.
- Includes two AC-powered speakers with integrated 20 Watt amplifier that can be daisy chained together for audio distribution.
PACKAGING:
Medium AV Case
Molded, weather resistant OD green case contains Control Processor, three Four Window Video Processors, a Quad Channel Video Scaler, an Audio Mixer and a 20 x 20 RGBHV Matrix Switcher.
Accessory Transport Case
Includes cables, touch panel, speakers and CAT5 TX/RX units.
|
Medium AV Case:
|
Dimensions: |
in. |
|
|
cm.
|
|
|
Weight:
|
|
|
|
kg.
|
|
|
Accessory Transport Case:
|
Dimensions: |
in.
|
|
|
cm.
|
|
|
Weight:
|
lbs.
|
|
|
kg.
|
|
|
|
