Single or Double-Stall PVC Shower Systems
Literature Download (pdf)

The Reeves™ Single-Stall and Double-Stall PVC Shower Systems provide a low-cost and lightweight solution to patient and personnel decontamination. Capable of being set up by only one (1) person within a matter of minutes, these economical Systems are perfect for responding to small-scale hazardous materials incidents during which limited personnel are available. The Reeves™ Single-Stall and Double-Stall PVC Shower Systems are also ideal for use as field showers.

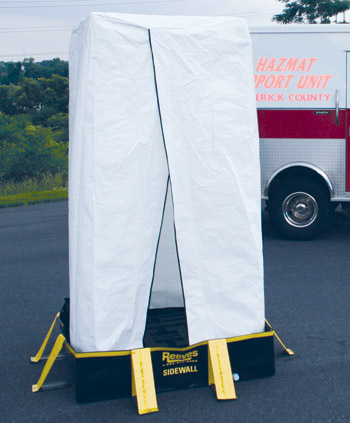

SINGLE-STALL SHOWER SYSTEM
RDPK0120

Features:

• Effective for NBC decontamination of one (1) ambulatory patient at a time
• Enough inside space to comfortably gross decontaminate individual personnel outfitted in any level of protection
• Constructed of rugged and durable Schedule 80 PVC piping with quick-connect fittings for a quick and easy assembly
• Integrated 2.5 gallon-per-minute showerheads supply the water flow necessary for thorough decontamination
• PVC shower frame sits inside of a collapsible-wall berm for complete run-off containment
• Privacy curtain encases PVC shower frame to provide patient modesty
• Integrated female garden hose connection allows for easy water hook-up

Components:

• Single-Stall Schedule 80 PVC Shower (includes 2 showerheads, privacy curtain and transport bags)
• 4’W x 4’L x 12”H Collapsible-Wall Primary Containment Berm
• 28”W x 40”L x 6”H Patient Elevation Grid (1)
• 30 GPM Submersible Water Pump with 25-Foot, 1 ½” Discharge Hose
• 35-Foot, ½” Red Supply Hose with Garden Hose Fittings (1)

 DOUBLE-STALL SHOWER SYSTEM
 RDPK0125

Features:

• Effective for NBC decontamination of two (2) ambulatory patients at a time
• Enough inside space to comfortably gross decontaminate two (2) personnel outfitted in any level of protection at the same time
• Constructed of rugged and durable Schedule 80 PVC piping with quick-connect fittings for a quick and easy assembly
• Integrated 2.5 gallon-per-minute showerheads supply the water flow necessary for thorough decontamination
• PVC shower frame sits inside of a collapsible-wall berm for complete run-off containment
• Privacy curtain encases PVC shower frame to provide patient modesty
• Integrated female garden hose connection allows for easy water hook-up

 Components:

• Double-Stall Schedule 80 PVC Shower (includes 4 showerheads, privacy curtains and transport bags)
• 4’W x 8’L x 12”H Collapsible-Wall Primary Containment Berm
• 28”W x 40”L x 6”H Patient Elevation Grids (2)
• 30 GPM Submersible Water Pump with 25-Foot, 1 ½” Discharge Hose
• 35-Foot, ½” Red Supply Hose with Garden Hose Fittings (1)
