10-Bed
18'W x 33.3'L x 9.7'H
RHPK0350 (Tan)
Literature Download (pdf)

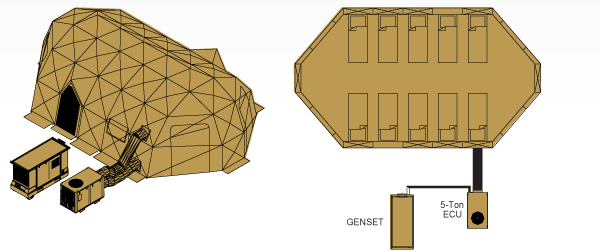

The Reeves™ rapidly-deployable 10-Bed Life Support Area provides response personnel and victims with a rapidly-deployable, rugged, man-portable, climate-controlled, soft-walled shelter that serves as temporary housing in the field during any emergency or crisis.
At the heart of the Life Support Area is the DRASH™ Model MX5 Shelter. The shelter is designed to provide temporary living quarters for those displaced during a disaster or a secure area for emergency personnel to be housed during a deployment, drill or exercise, offering 519 usable square feet of insulated space.
Deployed or taken down by only six (6) personnel within a matter of minutes without the need for special tools or dealing with loose parts, the Shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH™) military shelter frame technology. DRASH™ is a free-standing, self-supporting structure that requires no power or air to erect.
Each DRASH™ MX5 Shelter System features integrated doors, screen windows, ECU and utility ports and comes standard with one (1) MX5 Center Section, two (2) MX end caps, integrated flooring, transport-style duffel bags, repair kits, push poles, wind lines and steel pin stake sets.
The Reeves™ 10-Bed Life Support Area also includes a 5-Ton Mobile ECU System providing 60,000 BTU's of cooling and heating for patient and personnel safety and comfort, a fabric air plenum system for the proper distribution of cooling and heating throughout the entire shelter, a DRASHLITE 4-Light Set providing a total of 440 watts of fluorescent lighting, and an electrical set that includes portable outlets and extension cords.
More comprehensive packages that include power generation and distribution, hardened flooring, cots and bedding are also available.
Standard Colors:
Tan (other colors available upon request).
Options:
Bladder and Blower System, Power Generation and Distribution, Hardened Flooring, Personnel Bedding, etc.
Accessories/Replacement Parts:
MA100755T- M and MX Spares Kit
Shelter Specifications:
|
Exterior Dimensions:
|
ft.
|
19.8 x 34.9 x 11.1
|
|
m.
|
6 x 10.6 x 3.4
|
|
Interior Dimensions:
|
ft.
|
18 x 33.3 x 9.7
|
|
m.
|
5.5 x 10.1 x 3
|
|
Usable Area:
|
sp. ft.
|
519
|
|
sq. m.
|
48.2
|
|
Total Weight:
|
lbs.
|
724
|
|
kg.
|
328.4
|
|
Packed Dimensions:
|
in.
|
Center Section Only: 55 x 42 x 29
Individual End Cap (Two per shelter): 140 x 107 x 74
|
|
cm.
|
Center Section Only: 51 x 23 x 23
Individual End Cap (Two per shelter): 130 x 58 x 58
|
|
Packed Volume:
|
cu. ft.
|
Center Section Only: 38.8
Individual End Cap (Two per shelter): 15.6
|
|
cu. m.
|
Center Section Only: 1.1
Individual End Cap (Two per shelter): .44
|
|
