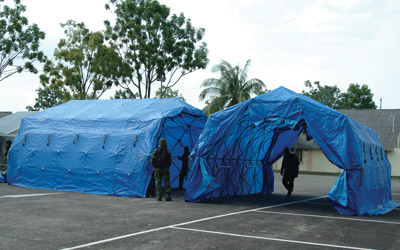

Single exterior cover DRASH "Responder" Series Shelters provide emergency response personnel with a variety of rapidly-deployable, rugged, lightweight, man-portable and user-friendly soft-walled shelters that are ideal for use as decontamination, hygiene, modesty, triage and rehabilitation areas.
Deployed or taken down by only 2 - 4 personnel within a matter of minutes without the need for special tools or dealing with loose parts, the shelter design is based on patented Deployable Rapid Assembly Shelter (DRASH) military shelter frame technology. DRASH is a free-standing, self-supporting structure that requires no power or air to erect. Additionally, there are no obstructions such as center poles or locking devices needed to keep the shelter erect. The frame of the Shelter is manufactured from Titanite®, a rugged and durable aerospace material, with a flex strength 270% greater than that of aluminum, and has 100% memory up to its ultimate breaking point. Its state-of-the-art, rugged design gives the DRASH Shelter the ability to withstand winds, temperature and the elements.
Each shelter comes standard with a transport-style duffel bag, repair kit, push poles, wind lines and a steel pin stake set.
Standard Colors: Blue (OD Green, Red and Tan also available upon request)
Options: Ground Tarp
|
SPECIFICATIONS
|
| Shelter Model: |
Exterior Dimensions (W x L x H): |
Interior Dimensions (W x L x H): |
Weight (lbs): |
| AD11SECB |
8'10" x 5' x 11' |
6'10" x 5' x 8'3" |
115 |
| AD12XBECB |
11'10" x 8' x 10'6" |
10' x 8' x 8'9" |
160 |
| AD13XBECB |
11'10" x 12' x 10'6" |
10' x 12' x 8'9" |
180 |
| AD14XBECB |
11'10" x 16' x 10'6" |
10' x 16' x 8'9" |
225 |
| AD15XBECB |
11'10" x 20' x 10'6" |
10' x 20' x 8'9" |
245 |
| AD16XBECB |
11'10" x 24' x 10'6" |
10' x 24' x 8'9" |
265 |
| AD2SECB |
13'6" x 10' x 11' |
11'6" x 10' x 8'3" |
155 |
| AD3SECB |
13'6" x 15' x 11' |
11'6" x 15' x 8'3" |
235 |
| AD4SECB |
13'6" x 20' x 11' |
11'6" x 20' x 8'3" |
265 |
| AD5SECB |
13'6" x 25' x 11' |
11'6" x 25' x 8'3" |
295 |
| AD6SECB |
13'6" x 30' x 11' |
11'6" x 30' x 8'3" |
325 |
| AD2XBECB |
13'6" x 8' x 10'6" |
14'6" x 8' x 8'9" |
205 |
| AD3XBECB |
16'6" x 12' x 10'6" |
14'6" x 12' x 8'9" |
210 |
| AD4XBECB |
16'6" x 16' x 10'6" |
14'6" x 16' x 8'9" |
215 |
| AD5XBECB |
16'6" x 20' x 10'6" |
14'6" x 20' x 8'9" |
295 |
| AD6XBECB |
16'6" x 24' x 10'6" |
14'6" x 24' x 8'9" |
400 |
