J Series Shelter
DRASH J Series Shelter System specifications
J Shelter System
With Hydraulic Container NSN: 8340-01-514-0115 (Green)  NSN: 8340-01-514-0117 (Tan)
With J Transport Trailer   NSN: 8340-01-487-6254 (Green)  NSN: 8340-01-487-6271 (Tan)


J Shelter

Total
Weight
lbs.
1600
kg.
726
Packed
Dimensions
in.
53 x 56 x 94
cm.
135 x 142 x 239
Usable
Area
sq. ft.
1,055
sq. m.
98
Packed
Volume
cu. ft.
300
cu. m.
8.5


1XBTJ END CAP
 Below numbers reflect one end cap. Two per shelter.

Total
Weight
lbs.
216
kg.
97.8
Packed
Dimensions
in.
52 x 33 x 22
cm.
132 x 86 x 61
Usable
Area
sq. ft.
97.7
sq. m.
9
Packed
Volume
cu. ft.
21.85
cu. m.
.62

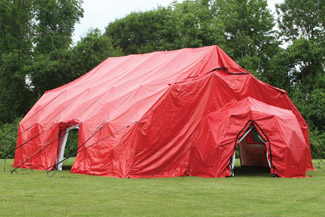

J Shelter System Photo
