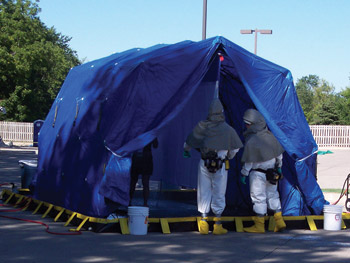

2-Lane Reeves™ First Response System
10'W x 16'L x 8.8'H
RDPK0008 (Blue)
Literature Download (pdf)


Perfect for First Responders, the durable, fully-operational 2-Lane Reeves™ First Response Decontamination System is a rapidly deployable system crafted to effectively decontaminate both male and female ambulatory and non-ambulatory patients in the event of a mass casualty incident.  Ideal for deploying in any setting with only 2-4 personnel and built to withstand winds, temperature and the elements, this System includes an open interior for rapid decontamination, curtains for patient modesty, a collapsible-wall berm for complete run-off containment, 2.5 gallon-per-minute showerheads and spray wands, and a self-heating, thermostatically-controlled multi-fuel water heater that provides up to 18 gallons per minute – all deployable in less than six (6) minutes!

System Features:

• Rapidly deployable system for effective NBC decontamination of male and female ambulatory and/or non-ambulatory patients
• No center poles or locking devices are needed to keep the shelter erect
• Shelter frame is manufactured from Titanite™, an aerospace material with a flex strength 270% greater than that of aluminum
• Shelter will remain functional with up to 60% of the frame damaged or broken
• Durable, pre-attached cover is fire-retardant, mildew-resistant, water-repellent and highly abrasion- and UV-resistant
• Lane division curtain provides modesty between sexes
• 5-foot wide lanes provide ideal working space for responders and patients
• Shelter sits inside of collapsible-wall berm for complete run-off containment
• 2.5 gallon-per-minute showerheads and spray wands supply the water flow necessary for thorough patient decontamination
• Water heating and solution injection unit provides a high volume of heated decon solution and rinse water to the integrated showers, allowing for a safer and more comfortable patient decontamination process


System Components:

• 10’W x 16’L Single Exterior Cover Reeves™ "Responder" Shelter (includes push poles, stake set, repair kit and transport bag)
• 2-Line Integrated Plumbing Package - 8 Showerheads, 2 Black Spray Wands and 2 Red Spray Wands
• 2-Lane Curtain Package
• 13’W x 17’L x 8”H Collapsible-Wall Primary Containment Berm
• 2’W x 8’L x 3.5”H Patient Elevation Grids (10)
• 30 GPM Submersible Water Pump with 25-Foot, 1 ½” Discharge Hose
• 165,000 BTU, up to 18 GPM Multi-Fuel Water Heater w/ Decon Solution Injection System (includes two (2) 35-foot, ½” water supply hoses - one (1) black and one (1) red)
• Water Supply Adapter Kit

Standard Colors:

Comes standard in Blue. OD Green, Red and Tan available upon request.


Options:

Waste Water Bladders
50W Lights
Roller System
Diesel Generator
Pre/Post Decon Kits
Mesh Decon Litters
Spine Boards


Accessories/Replacement Parts:

F329601 - XB Strut Blue
F329631 - XB Strut Red
F329751 - XB Strut Green
F329781 - XB Strut Yellow
RDA0008 - 2-Lane Curtain Set
RDIP0005 - 2-Line Integrated Plumbing Package
RDIP0013 - Plumbing Repair Kit
RDIP0014 - 2.5 GPM Shower Head
RDIP0015 - Black Spray Wand
RDIP0016 - Red Spray Wand
RD30105H - 35-Foot, 1/2" Black Supply Hose
RD30100H - 35-Foot, 1/2" Red Supply Hose
RDSP0032 - "XB" Lifting Pole
RDCB0013 - 13'W x 17'L x 8"H Berm
