DC2E Large Rear Projection Screen Display
1004180 / NSN's Pending

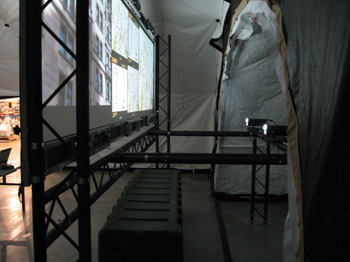

Designed to fit into a large Deployable Rapid Assembly Shelter (DRASH), the DC2E J Series Large Rear Projection Screen Display features three DLP projectors that project three separate large, high resolution images. Its unique configuration allows it to be set up nearly 5 feet above the floor allowing for ease of viewing from the back of the TOC. Regardless of its size, the Large Screen Display system packs down tightly into three lightweight cases and does not require any tools for installation.
FEATURES:
- Native resolution 1400 x 1050 (SXGA+). System accepts and displays images with a resolution of 640 x 480 to 1920 x 1200.
- Projection Screen measures 3.9’ x 15.2’ to allow for three separate 47” x 60.6” x 76.7” diagonal viewing areas.
- Three DLP projectors are designed for 24/7 operation. To ensure continuous operation, a maintenance kit is available for the projector that replaces all moving internal components within 8000 hours of system operation.
- 2000/3000 hour lamp life, 300-watt lamp, 2600 ANSI lumens weighs only 9 lbs. (4 kg.) and has a low noise level of 28 dB(A).
- Power 100-240 VAC, 12A, 50-60 Hz.
- Lightweight 1” square tube aluminum frame system with locking hinge points allows for fast set up and take down.
- Includes long life mechanical elements, such as magnesium and ceramics, as well as over specified fans and color wheel engine.
- Fully sealed optical architecture ensures faultless operation in harsh environments.
- Lightweight 2” tube frame supports all three projectors. Rugged, black, rubberized coating allows for increased durability. Slip fit joint system features quick securing clips.
- Three projector mounts with wide adjustability included for set up on uneven terrain.
- One 50Ft. and two 25Ft. HD15 VGA video cables included. One 30Ft. NEMA 5-15 extension cable and one 6 outlet power strip included.
|
|
