DC2E Large Front / Rear Projection Screen Display
DC2E Large Front/Rear Projection Screen Display
1007655 / NSN's Pending

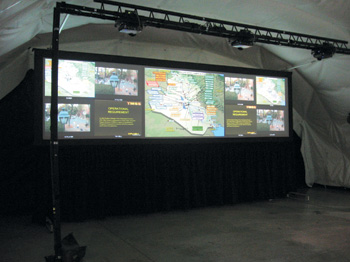

Designed to fit into a J series Deployable Rapid Assembly Shelter (DRASH), the DC2E Large Front/Rear Projection Screen Display system features three DLP projectors that project three separate large, high resolution viewing areas. Its unique design allows it to be set up in a front or rear projection configuration. The entire system including truss, screen, projectors and cables packs down tightly into four cases. All cases have large handles on all sides, purge valve and wheels on one end to increase transportability.


FEATURES:
  • Native 1400 x 1050 (SXGA+) resolution. Accepts resolutions from 640 x 480 through 1920 x 1200.
  • Front projection configuration features three independent viewing areas of 54” x 72” x 90” diagonal.
  • Rear projection configuration features three independent viewing areas of 45” x 60” x 75” diagonal.
  • Images are greater than 48” above the floor allowing for ease of viewing from the back of the TOC.
  • Three DLP projectors are designed for 24/7 operation. Includes long life mechanical elements, such as magnesium and ceramics, as well over specified fans and color wheel engine.
  • Fully sealed optical architecture ensures faultless operation in harsh environments. Depot level, 8000 hour maintenance kit replaces all moving parts.
  • 2000/3000 hour lamp life, 300-watt lamp, and 2600 ANSI lumens. Each projector weighs only 9 lbs and has a low noise level of only 28 dB(A).
  • Power 100-240 VAC, 12A, 50-60 Hz.
  • Lightweight 2” tube frame structure with rugged black coating supports projectors and screen. Includes adjustable feet for uneven terrain.
  • Each of the three projector mounts allow for easy adjustments and stow attached to the projector.
  • Setup time for either front or rear configuration is less than 30 minutes using four people. No tools required.


PACKAGING:

The Large Front/Rear Projection Screen Display system packs down tightly into four lightweight cases.

Packed Projector Case
Case 1:
Dimensions:
in.
80.75 W x 22.5 D x 18 H
cm.
205.1 W x 57.2 D x 45.7 H
Weight:
lbs.
165
kg.
74.8
Packed Screen and
Frame Case
Case 2:
Dimensions:
in.
80.75 W x 22.5 D x 18 H
cm.
205.1 W x 57.2 D x 45.7 H
Weight:
lbs.
175
kg.
79.4
Packed Screen and
Frame Case
Case 3:
Dimensions:
in.
80.75 W x 22.5 D x 18 H
cm.
205.1 W x 57.2 D x 45.7 H
Weight:
lbs.
192
kg.
87.1
Packed Screen and
Frame Case
Case 4:
Dimensions:
in.
80.75 W x 22.5 D x 18 H
cm.
205.1 W x 57.2 D x 45.7 H
Weight:
lbs.
167
kg.
75.7
