DC2E
Reeves Medium Screen Display, XGA

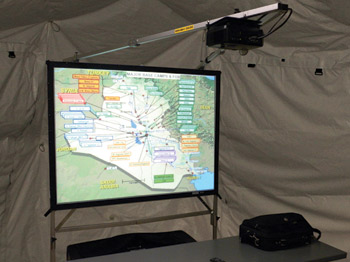

The DC2E Medium Screen Display, XGA.

DC2E Medium Screen Display, XGA

1009852 / NSN's Pending



The entry-level DC2E Medium Screen Display, XGA features a DLP projector that accepts and displays images with a resolution of up to 1280 x 1024. Despite its numerous capabilities, the Medium Screen Display system is compactly stored in two separate wheeled cases for easy transport.

Multiple screen systems can also connect together to form a dual screen (1009853) or triple screen (1009861) system.


FEATURES:
  • Native 1024 x 768 (XGA) resolution. System accepts and displays images with a resolution of up to 1280 x 1024.
  • Wide range of signal compatibility.
  • Viewing area measures 59” x 44” x 73” diagonal.
  • 4000/6000-hour lamp life, 220-watt lamp, 2600 ANSI lumens weighs only 5.5 lbs. (2.5 kg.) and has a low noise level of only 32 dB(A).
  • Power 100-240 VAC, 2.5A, 50/60Hz.
  • Lightweight 1” square aluminum frame system with locking hinge points for fast set up and take down.
  • Cantilevered projector mounting arm preserves valuable floor space.
  • Multiple projection screens can be connected together to form a single large screen.
  • Spare lamp included.


PACKAGING:

Screen and projector may be stored in two cases with wheels for easy transport.

Packed Projector Case
Case 1:
Dimensions:  in.
24.5 W x 19.5 D x 15 H
cm.
62 W x 50 D x 38 H
Weight:
lbs.
35
kg.
15.9
Packed Screen and
Frame Case
Case 2:
Dimensions:
in.
50 W x 17.5 D x 13 H
cm.
127 W x 44.5 D x 33 H
Weight:
lbs.
74
kg.
33.6
