DRASH Trailers

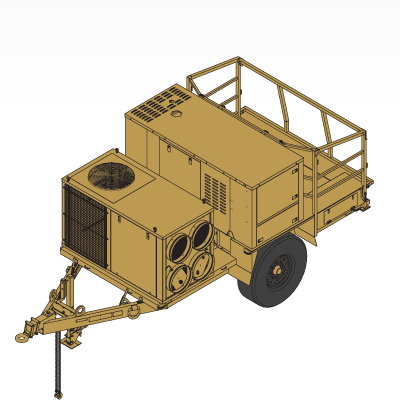

DRASH HP-2C/188 Trailer

HP-2C/188
NSN: 8340-01-459-4366 (Green)
NSN: 8340-01-459-1803 (Tan)

The HP-2C/188 Trailer provides three primary features for the end user of a smaller
DRASH shelter - cargo space, environmental control and power. It has a 77
cubic foot cargo area, includes a 16 gallon fuel tank and comes with an 18 kW
Genset and an 8 Ton ECU.



FEATURES
Genset Output [kW] 18
Fuel Tank Capacity [Gal/l] 16 / 60.6
ECU Output [ton] 8
Cargo Volume [cu.f/cu.m.] 77 / 2.2

DIMENSIONS [in./m.] WEIGHTS [lbs./kg.]
Length 194 / 4.9 Tare 3,549 / 1,610
Width 86 / 2.2 Gross 4,200 / 1,905
Height 78 / 2.0 Tongue 379 / 172
