DRASH Trailers
DRASH SKID MOUNTED GENSET

SKID MOUNTED GENSET
POWER OUTPUT: 208V / 3 Phase / 60 Hz
NSNs: Pending

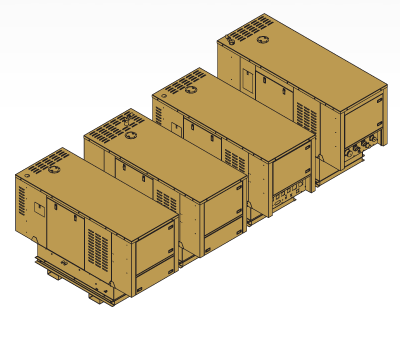

DRASH 18 kW, 28 kW, 33 kW Standard and 33 kW Large skid mounted gensets are provided for situations where a trailer is not necessary for mobility or other components.



  18 kW 28 kW 33 kW Std. 33 kW Lg.
Fuel Capacity [Gal. / l/] 16 / 60.6 20 / 75.7 26 / 98.4 45 / 170.3
Control Analog/Digital Digital Analog/Digital Analog/Digital

Length [in. / m.] 85 / 2.2 85 / 2.2 85 / 2.2 90 / 2.3
Width [in. / m.] 35 / .9 35 / .9 35 / .9 35 / .9
Height [in. / m.] 57 / 1.4 57 / 1.4 57 / 1.4 62 / 1.6
Weight [lbs. / kg.] 1,475 / 669 1,775 / 805.1 1,925 / 873.2 1,975 / 895.8
