DRASH Trailers

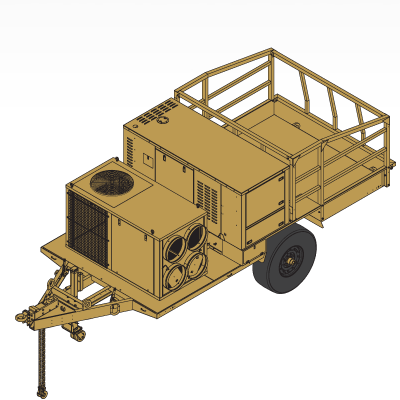

DRASH HP-4/338 Trailer

HP-4/338
NSN: 8340-01-514-0577 (Green)
NSN: Pending (Tan)

The HP-4/338 Trailer provides three primary features for the end user of a larger
DRASH shelter - cargo space, environmental control and power. It has a 140
cubic foot cargo area, includes a 26 gallon fuel tank and comes with a 33 kW
Genset and 8 Ton ECU.


FEATURES
Genset Output [kW] 33
Fuel Tank Capacity [Gal/l] 26 / 98.4
ECU Output [ton] 8
Cargo Volume [cu.f/cu.m.] 140 / 4.0

DIMENSIONS [in./m.] WEIGHTS [lbs./kg.]
Length 228 / 5.8 Tare 4,737 / 2,149
Width 86 / 2.2 Gross 6,500 / 2,948
Height 78 / 2.0 Tongue 302 / 137
